• Anti interference capacitive liquid level detection, commonly used in situations where multiple needles interfere with each other;


• Voltage input: DC5V;

• Environment adaptive peeling function;

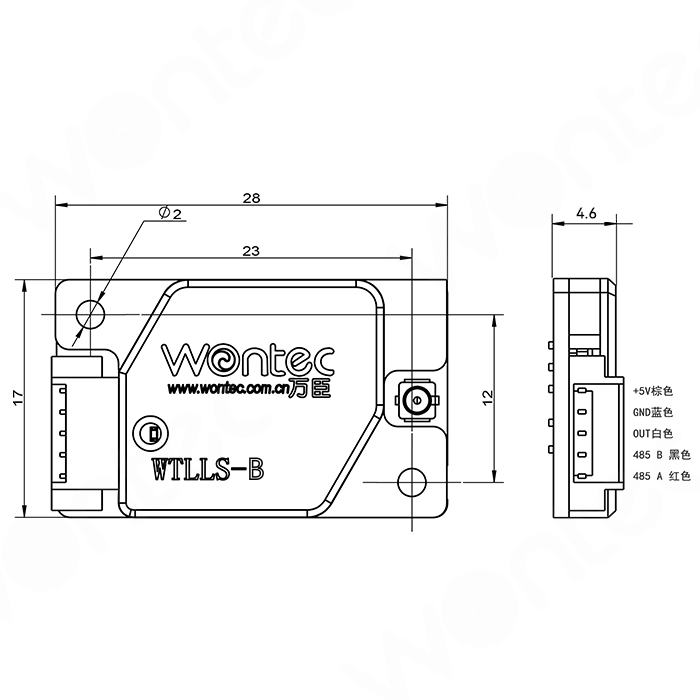

• Reduce the size to 28mm x 17mm x 4.5mm (including the casing);

• Install insulated casing, ultra-thin body, sturdy and durable;

• Power consumption<1W;

• Working temperature: -40~85 ℃ (industrial grade);

• One channel liquid level trigger signal output (can be used in conjunction with intelligent motor drivers);

• The liquid detection accuracy can reach up to 5ul (under medium conditions), and the stable use detection accuracy is 20ul;

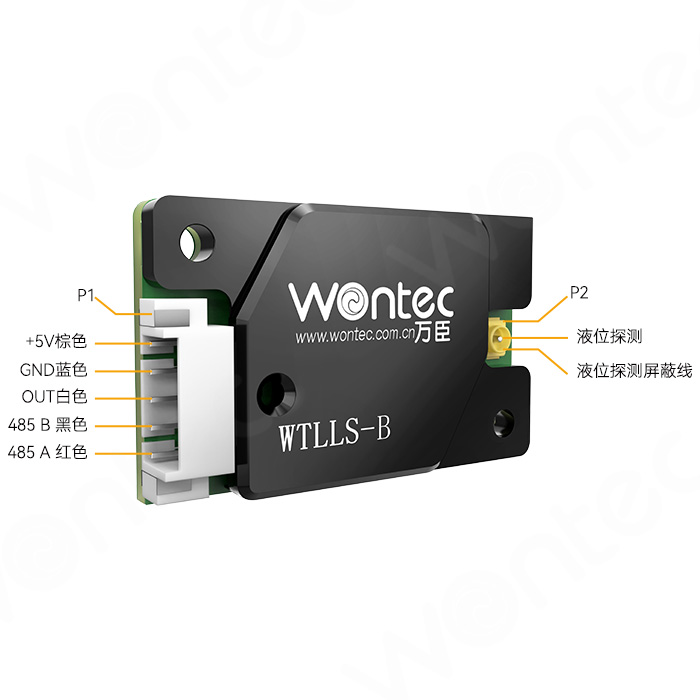

• Communication interface: RS485 (sensitivity and station number for detecting liquid level can be changed if necessary);

WTLLS-B instruction manual download
