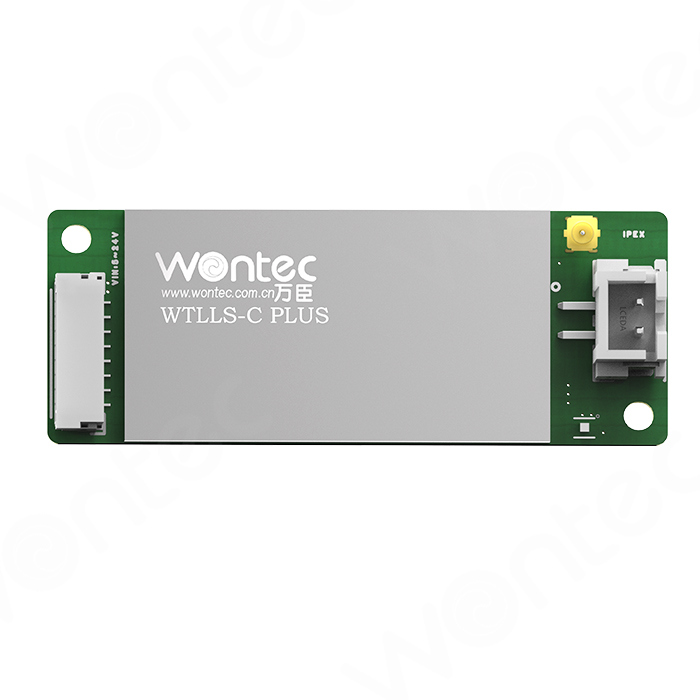

• Feedback type capacitive liquid level detection, closed-loop control is more reliable


• Voltage input: DC5V-24V

• Multiple needles detect simultaneously in parallel without interference

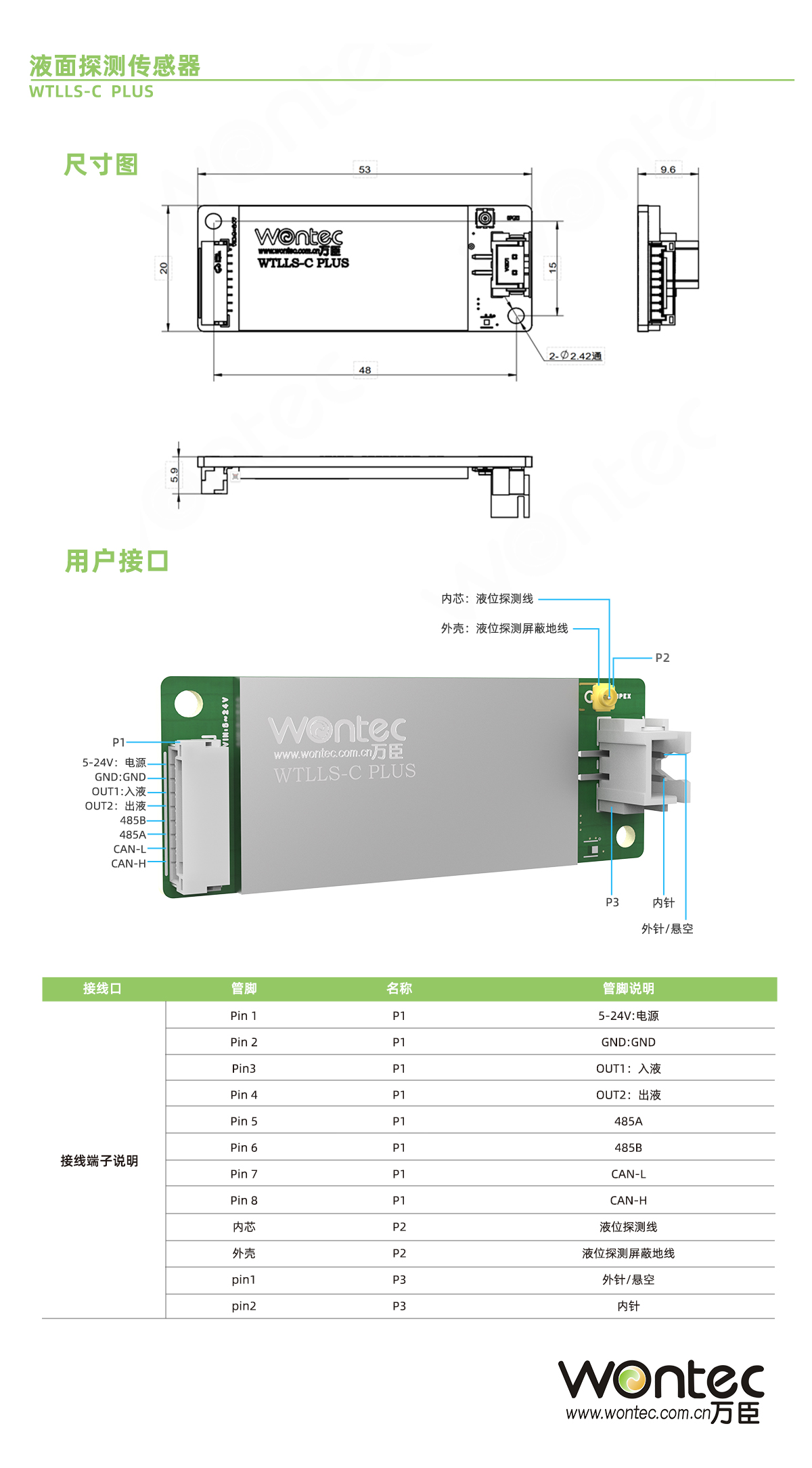

• Size reduced to 53mm x 20mm x 15mm (including casing)

• Install insulated casing, ultra-thin body, sturdy and durable

• Power consumption<1W

• Working temperature: -40~85 ℃ (industrial grade)

• One liquid input signal, one liquid output signal

• The liquid can detect a minimum volume of 5 ul (under certain medium conditions), and stable detection requires more than 20 ul.

• Communication interface: RS485/CAN (can change the sensitivity of detecting liquid level, station number, etc.)

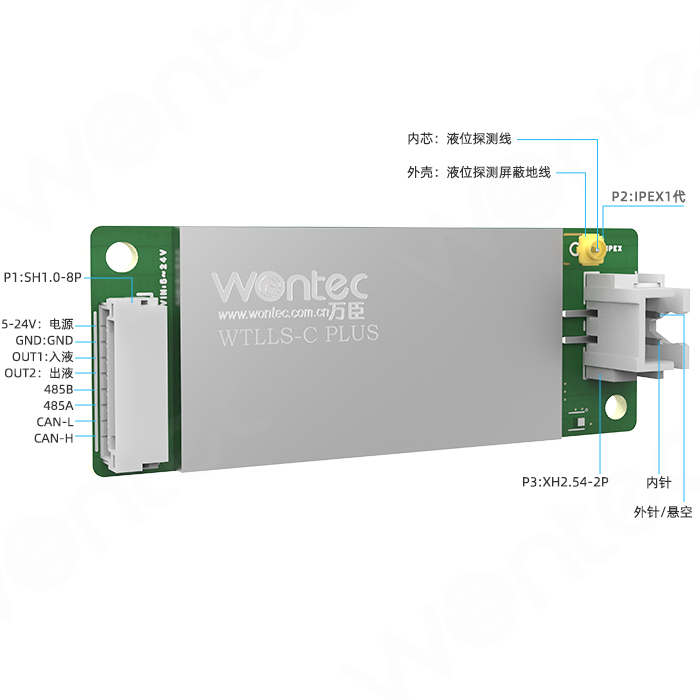

• Compatible with XH2.54-2PIN or IPEX capacitor input interface


WTLLS PLUS User Manual Download
