Voltage input: DC24V

High precision liquid level detection function;

Needle heating control function, accuracy ± 1 ℃;

Liquid circuit blockage detection function, with adjustable suction and discharge thresholds;

Needle touch bottom anti-collision function;

The liquid level detection line is compatible with both XH2.54-2PIN and IPEX input interfaces;

Three IO outputs: liquid level trigger signal, needle bottom signal, and liquid path blockage signal;

Working temperature: -40~85 ℃ (industrial grade)

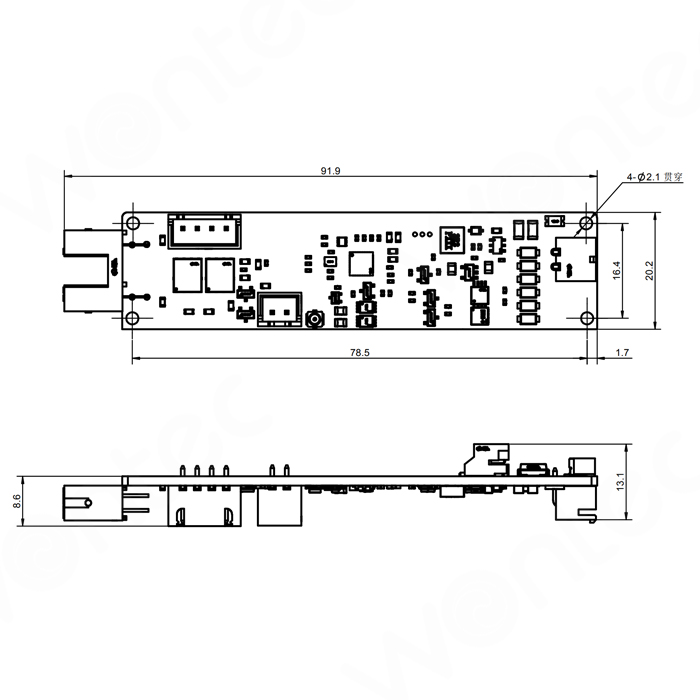

Size: 91.9mm x 20.2mm x 13.1mm

Communication interface: RS485/CAN
