Support RS485 Modbus can CANopen IO control;

The driver encoder is installed at the tail of the motor to achieve closed-loop control and reduce the volume;

The all-in-one machine can work in torque or positioning mode, without inputting pulse, and is controlled by communication command;

The integrated torque zero return reset mode can choose to omit the zero return sensor on the motion module;

The driver can be directly connected with the liquid level sensor and the return to origin sensor for special applications;

The driver has temperature and torque overload protection;

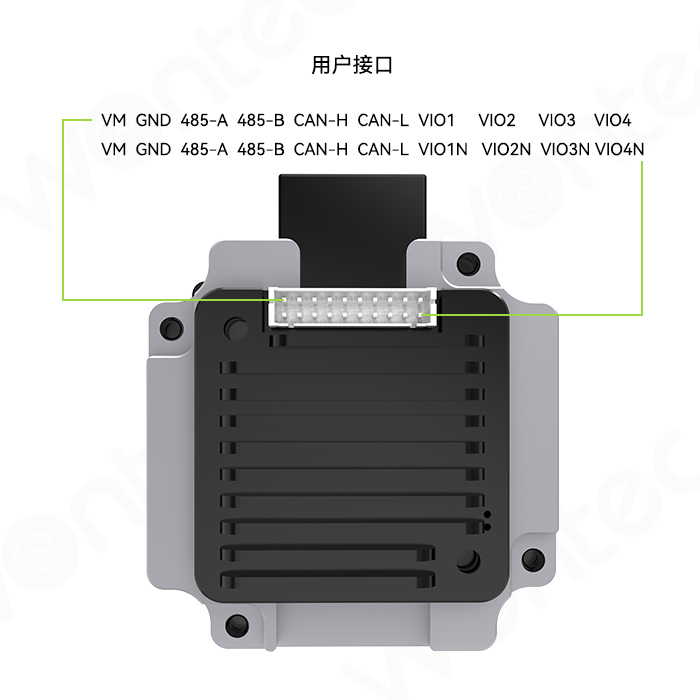

In the provincial wiring mode, only 4 lines are needed to connect with the upper computer, two are DC24V power supplies and two communication lines;

254 station numbers (00 to 253) are supported, and the hexadecimal number is 0X00 to XFD;

Parameter settings (subdivision, current, speed, acceleration/deceleration, displacement, torque, etc.);

It can be changed at any time through the upper computer;

Complete the execution through simple control instructions;

Motion positioning can be completed by absolute value or relative value command;

Precision cast aluminum alloy shell, high strength, low temperature rise, corrosion resistance;

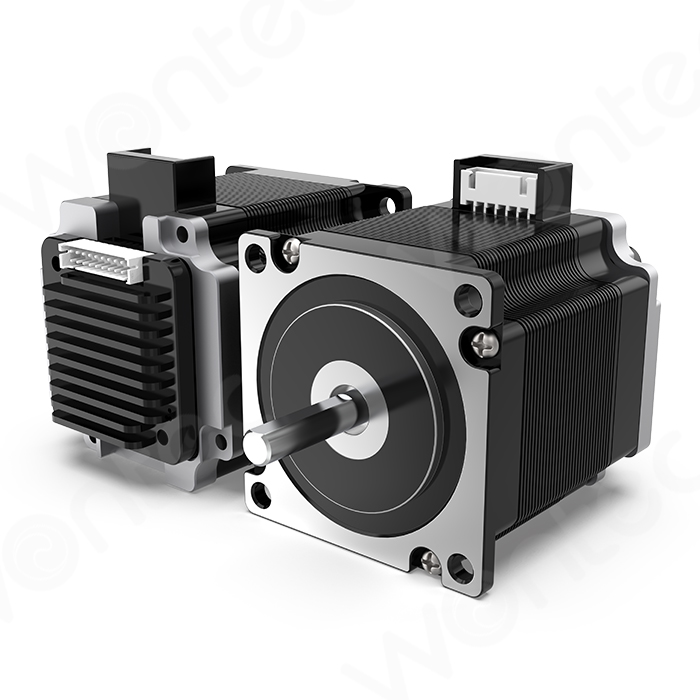

Adapt to 20/28/42/57 size two-phase 4-wire stepping motor;
